Chemical Oil Agent Automatic Batching System For 22 Kinds Of Liquid Raw Materials
Production introduction:
1. Raw material feeding:
Before the system starts the automatic weighing control, the 22 kinds of liquid raw materials should be selected according to the formula ratio of the corresponding product name (the quantitative value difference is stored), and the delivery hose should be placed in the raw material barrel and reinforced to prevent it from falling off, and then start the control program and start working !
2. Raw material transportation
The feeding value of the two liquids is controlled by the DCS system as a whole.

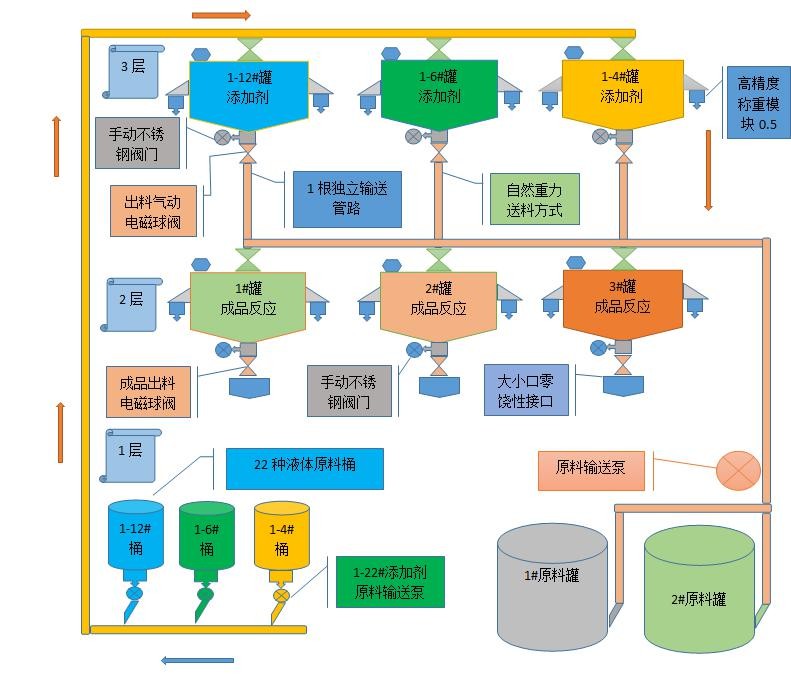

The liquid material is designed to be transported through pipelines, directly pumped into the metering tank by the pump, and incremental metering.
After reaching the target setting value, the pneumatic ball valve is closed, and the design metering accuracy is 18%. 22 kinds of additives are directly controlled according to the logic sequence of the formula (each additive is set by the system to enter the target metering tank), and the advance amount program is embedded to ensure its batching accuracy and design measurement accuracy of 1%.
When the system batching is completed, the indicator will display with a green light to indicate that the batching is complete, waiting for the next batching instruction. In case of insufficient raw materials in the section, an automatic alarm will be issued to prompt the operator to replace the raw material barrel, and the original batching procedure will continue.
When the preparation is completed, the raw materials of each metering tank can be manually selected to be transported to the barrel! The operation mode is semi-automatic, you must set the finished product discharge value and click to start the automatic discharge, and it will automatically stop when the target value is reached.

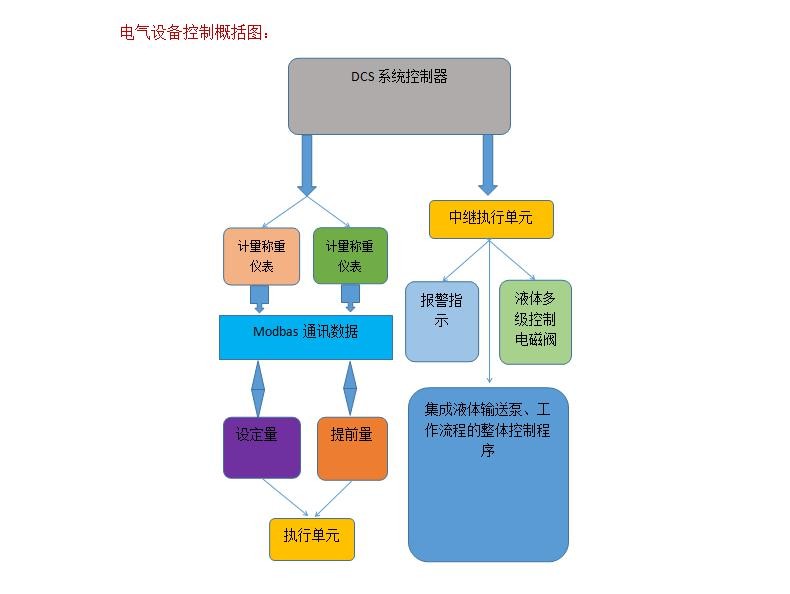

So far is a complete cycle, DCS control system DCS integrated touch screen operation unit, working status is clear at a glance, and can be automatically switched by hand, manual mode can be selected for quick troubleshooting in future maintenance, and multiple sets of recipes are selectively produced and recipe values It will be kept confidential and displayed by the product code. The set value can be set directly on the touch screen without special program setting, and the fault alarm device is embedded, even if the system fails, it can be manually operated to complete the batching!
